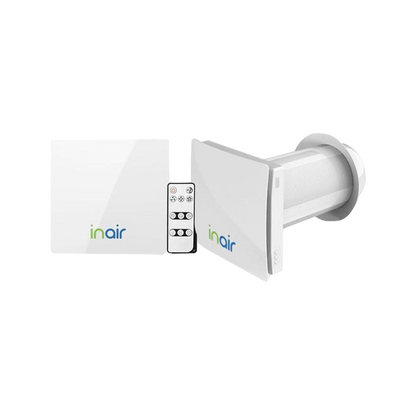

InAir™ IA60-TWHRV Thru the Wall Heat Recovery Ventilation Unit
Couldn't load pickup availability

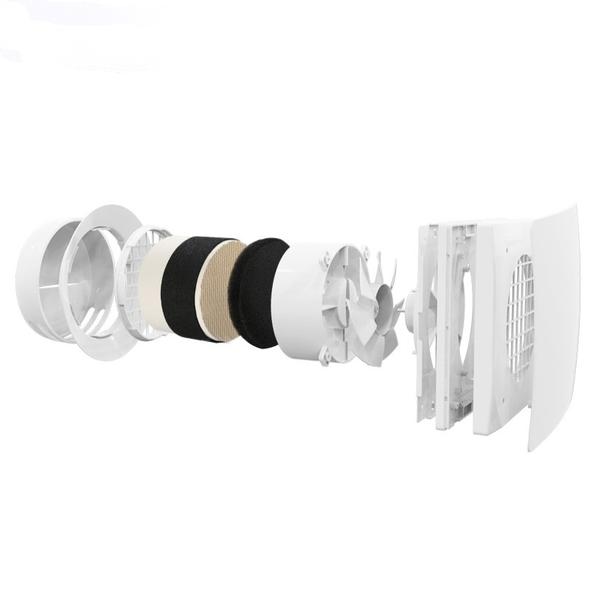

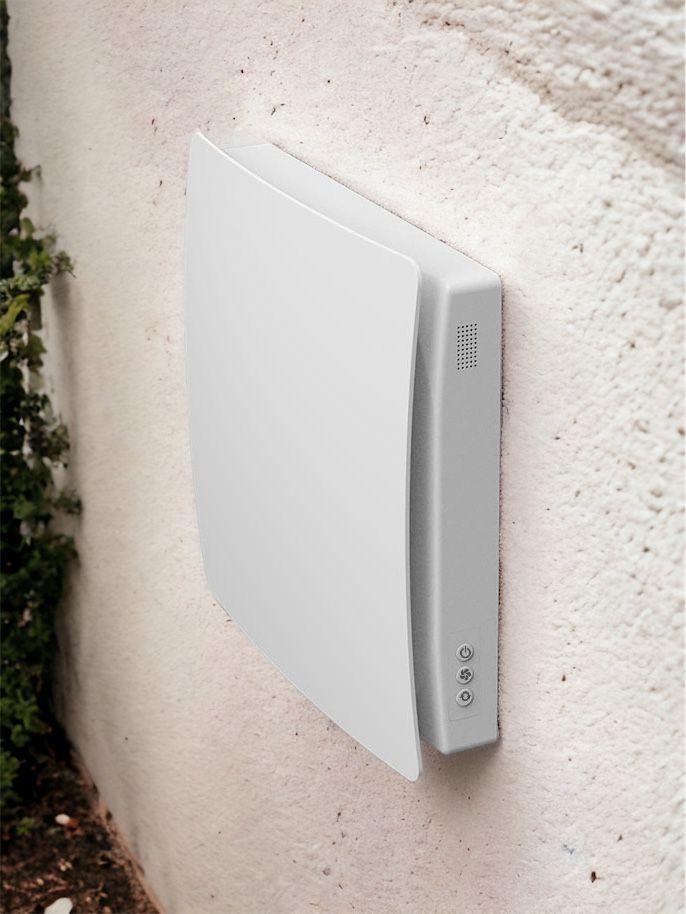

The InAir™ IA60-TWHRV is a versatile and efficient through-the-wall heat recovery unit designed to meet a wide range of ventilation needs.

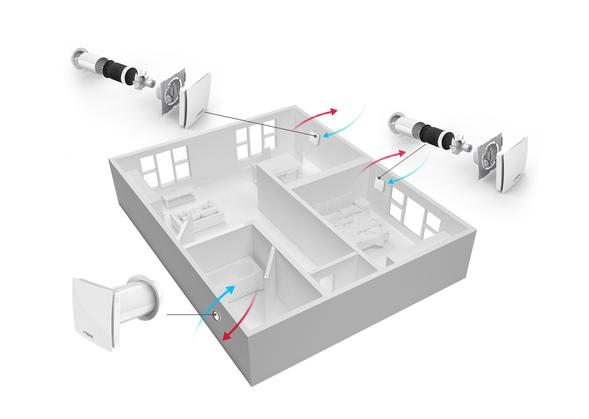

Each unit operates independently as a single-room solution or can be combined for whole-house ventilation. For optimal performance in larger spaces, installation in pairs is recommended.

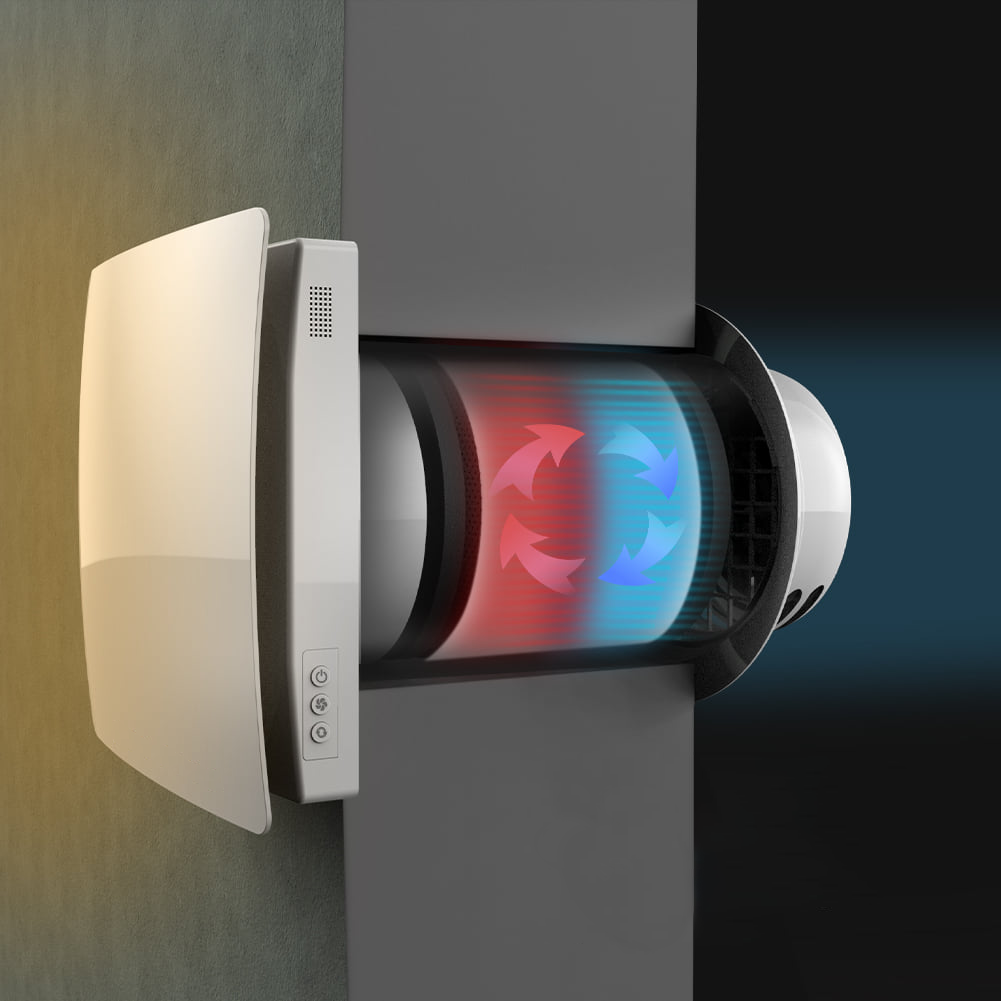

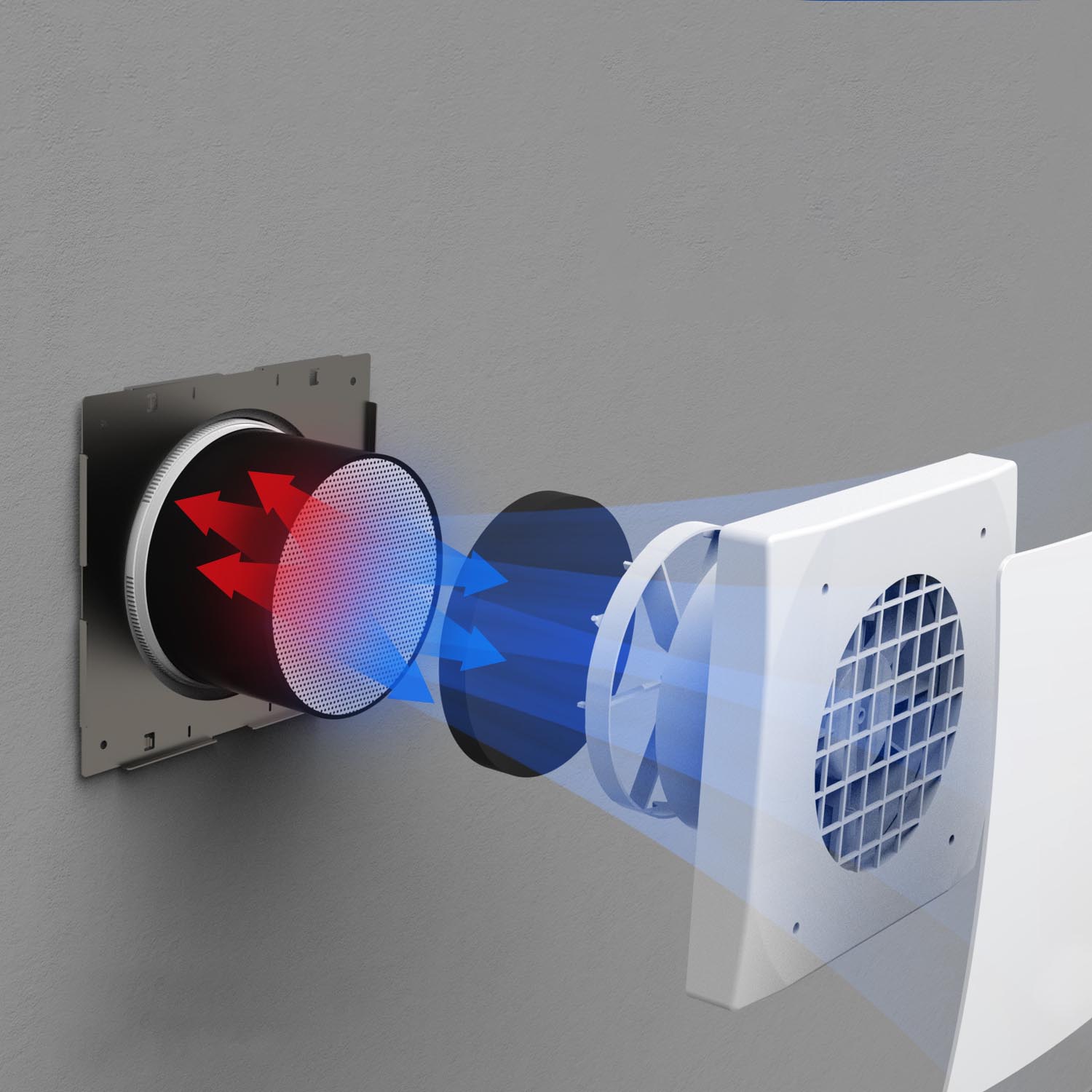

With multiple operating modes, including extractor fan, positive input ventilation, and continuous heat recovery, the IA60-TWHRV retains up to 90% of a room’s heat, transferring it to incoming fresh air. This minimises heating costs, supports environmental sustainability, and enhances both comfort and energy efficiency.
Engineered to combat humidity and condensation, the IA60-TWHRV helps prevent dampness, fostering a healthier, safer, and more comfortable indoor environment while protecting building structures from damage.
Key Benefits:
- Efficient, energy-saving supply and exhaust ventilation for homes, flats, offices, and other spaces.

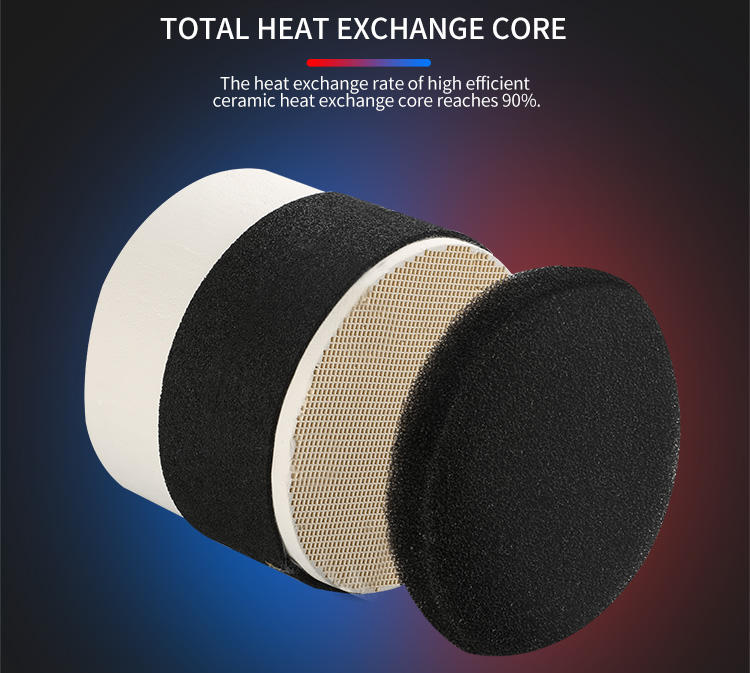

- Reduced heat loss through ceramic heat recovery with up to 90% efficiency.
- Balanced humidity control for a customisable indoor microclimate.

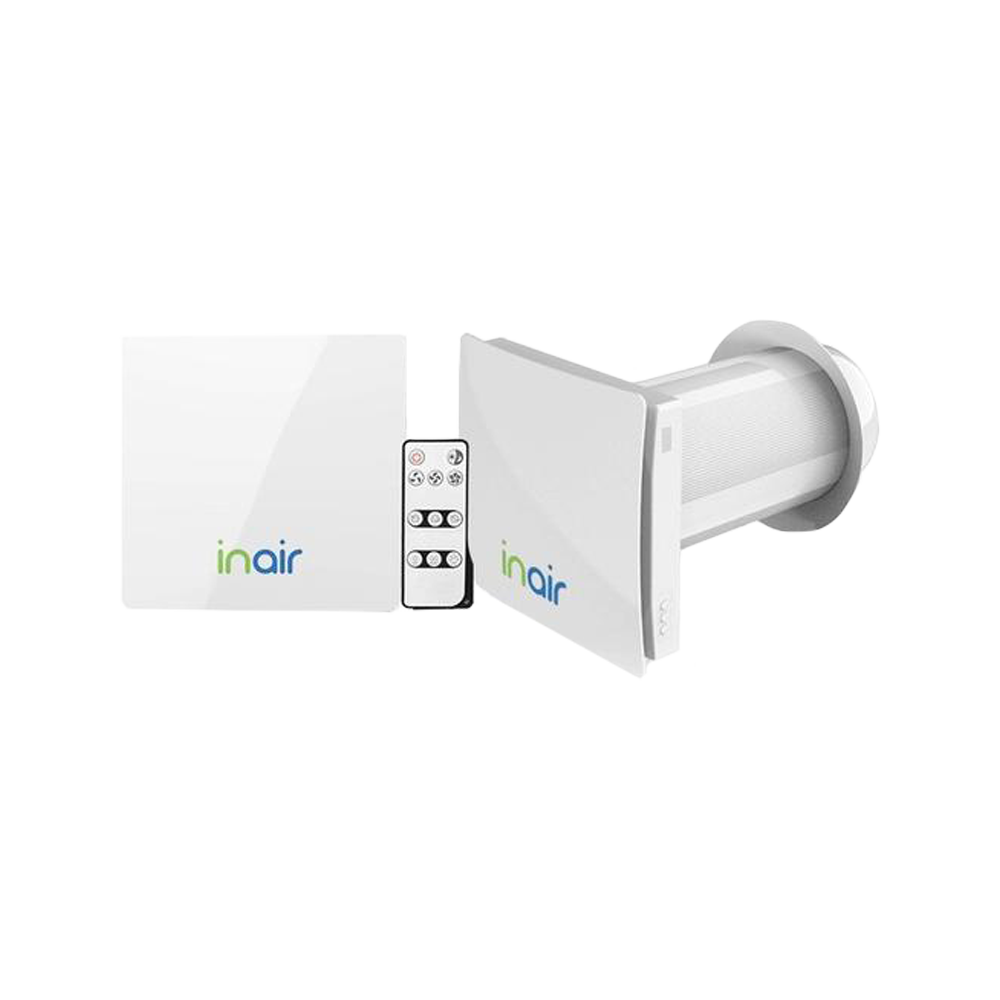

- Integrated control button, Wi-Fi, and remote control for convenience.

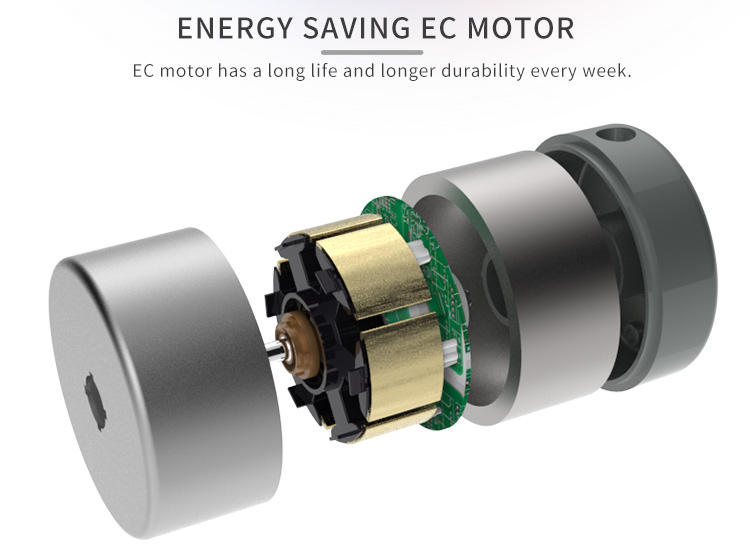

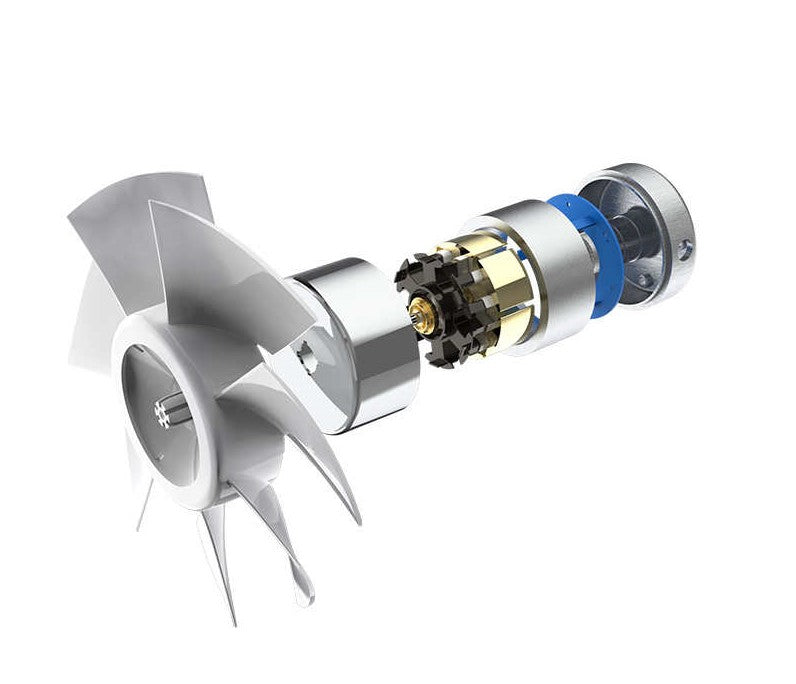

- Ultra-low power consumption ranging from 1.8W to 6W.
- Easy maintenance with a removable, washable G3 pre-filter.
Filter Upgrade Options:
- HEPA Filter: Captures 99.97% of airborne allergens like pollen, mould spores, dust, pet dander, microbes, and smoke (particles as small as 0.3 microns).
- AOC Carbon Filter: Reduces VOCs and household odours from cooking, pets, and smoke, while prolonging the lifespan of the True HEPA filter.
Ideal for homes and workplaces, the IA60-TWHRV provides fresh air while expelling stale air, excelling in winter by delivering pre-warmed air to prevent moisture buildup, toxic mould, and structural rot. This makes it a standout choice for maintaining a healthy, energy-efficient indoor atmosphere.
Model |
InAir IA60TWHRV |
Product Type |
Thru-the-wall Heat Recovery Unit |
Colour |
White |
Material |
ABS |
Noise (dB) |
20-33dB |
Airflow (m³/h) |
48 - 60 m³/h |
Heat Recovery rate % |
Up to 90% |
Voltage/frequency |
220VAC/50Hz (Class 1) |
Power (W) |
7W |
Controls |
Remote Control |
Filter |
G3 (Carbon and HEPA Optional) |
Heat Exchanger |
Ceramic |
Size |
242 x 250 x 56mm |
Room size |
Up to 25m² |
Functions |
Fresh Air Recovery/Extract/Intake |
Speeds |
High/Medium/Low |
Heat recovery Mode |
65 Sec. In and Exhaust Cycles |
Weight |
2.8 kgs |
Warranty |
2 Years |
Protection |
IPX2 |
*Please note this is for one unit.
